RODLESS CYLINDER

Ø 16, 25, 32 and 40

RODLESS CYLINDER





SP Airtool Product Database Search For Prices, Specifications & Ordering

Search for Cylinders & Actuators products

Metal Work rodless cylinders come in four different bores - 16, 25, 32 and 40mm - and incorporates numerous innovations
  • Calibrated and extruded anodized aluminium alloy jacket
  • Sensor slots and accessory slots in the jacket itself.
  • Longditudinal seal by means of specially-shaped indeformable stainless steel strips.
  • Strokes 100 to 5700 mm with 1mm intervals.
  • Adjustable integrated pneumatic cushoining.



  • TECHNICAL DATA NBR Viton®
    Operating pressure 0.5÷8 bar (0.05÷0.8 MPa; 7÷116psi)
    Temperature range 15°C÷80°C - 5°F to 176°F
    Fluid 50µm unlubricated filtered air lubrication, if used must be continuous.
    Bores (mm) Ø 16, 25, 32 and 40
    Type of construction Double-acting rodless cylinder with direct transmission system
    Strokes 100 to 5700mm with 1mm interval
    Threaded ports M5, G1/8", G1/4"
    Assembly as required
    Gaskets V< 1 m/s (NBR)    |   V> 1 m/s (Viton®)
    Cushioning stroke (mm) Ø 16÷15mm - Ø 25÷21mm - Ø 32÷26mm - Ø 40÷32mm

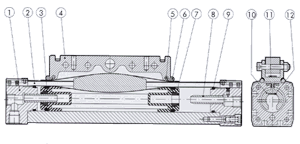

    COMPONENTS

      1. CYLINDER HEAD: aluminium alloy
      2. JACKET: profiled anodized aluminium alloy
      3. PISTON GASKET: NBR or Viton®
      4. CENTRAL ELEMENT: aluminium alloy
      5. SCRAPER: Delrin 500
      6. O-ring: NBR
      7. BULL RING: Hostaform
      8. CUSHOINING CONE: aluminium alloy
      9. STATIC O-RINGS: NBR or Viton®
      10. PISTON: aluminium alloy
      11. OUTER STRIP: stainless steel
      12. INNER STRIP: stainless steel
    Rodless Cylinder

    Please note this is only a small selection of our Pneumatics range.
    Contact us for a catalogue or further details.
